AWS VPC private subnet & public subnet NAT gateway, Internet gateway

AWS

VPC - Internet gateways, NAT gateways, Route tables, Subnets

VPC Security - Network ACLs

EC2





1. VPC 생성

name : test-vpc

CIDR : 10.90.0.0/16



2. Internet gateway 생성

Internet gateway

name : test-igw



Internet gateway vpc connect

vpc 연결 : test-vpc





3. Private Subnet, Public Subnet 생성

Private Subnet-01

vpc : test-vpc

name : test-pri-sub01

CIDR : 10.90.10.0/24

Availability Zone : ap-northeast-2b



Public Subnet-01

vpc : test-vpc

name : test-pub-sub01

CIDR : 10.90.1.0/24

Availability Zone : ap-northeast-2a



Public Subnet-02

vpc : test-vpc

name : test-pub-sub02

CIDR : 10.90.3.0/24

Availability Zone : ap-northeast-2b





4. NAT gateway 생성

NAT gateway

name : test-natGateway



subnet

test-pub-sub01



Allocate Elastic IP address

할당 받은 IP를 생성한 NAT gateway에 배정





5. Route table 설정

Private Route table

vpc : test-vpc

name : test-routeTable-pri

explicit subnet association : test-pri-sub01



routes

0.0.0.0/0 - NAT gateway

10.90.0.0/16 local





Public Route table

vpc : test-vpc

name : test-routeTable-pub

explicit subnet association : test-pub-sub01



routes

0.0.0.0/0 - Internet gateway

10.90.0.0/16 local



6. Network ACLs 설정

Private Network ACL

Inbound Rules:

100	HTTP	TCP	80	0.0.0.0/0	DENY
110	HTTPS	TCP	443	0.0.0.0/0	DENY
120	SSH	TCP	22	0.0.0.0/0	DENY
130	Ephemeral	TCP	1024-65535	0.0.0.0/0	ALLOW
140	Custom Rule	TCP	80	Subnet Range	ALLOW
150	Custom Rule	TCP	443	Subnet Range	ALLOW
160	Custom Rule	TCP	22	Subnet Range	ALLOW
*	ALL Traffic	ALL	ALL	0.0.0.0/0	DENY

Outbound Rules:

100	HTTP	TCP	80	0.0.0.0/0	ALLOW
110	HTTPS	TCP	443	0.0.0.0/0	ALLOW
120	Ephemeral	TCP	1024-65535	0.0.0.0/0	ALLOW
*	ALL Traffic	ALL	ALL	0.0.0.0/0	DENY

여기서 "Subnet Range"는 사용 중인 서브넷의 IP 주소 범위를 의미합니다. 여기선 10.90.10.0/24



Public Network ACL

Inbound Rules:

100	HTTP	TCP	80	0.0.0.0/0	ALLOW
110	HTTPS	TCP	443	0.0.0.0/0	ALLOW
120	SSH	TCP	22	0.0.0.0/0	ALLOW
130	Ephemeral	TCP	1024-65535	0.0.0.0/0	ALLOW
*	ALL Traffic	ALL	ALL	0.0.0.0/0	DENY

Outbound Rules:

100	HTTP	TCP	80	0.0.0.0/0	ALLOW
110	HTTPS	TCP	443	0.0.0.0/0	ALLOW
120	Ephemeral	TCP	1024-65535	0.0.0.0/0	ALLOW
*	ALL Traffic	ALL	ALL	0.0.0.0/0	DENY



7. Test EC2 생성

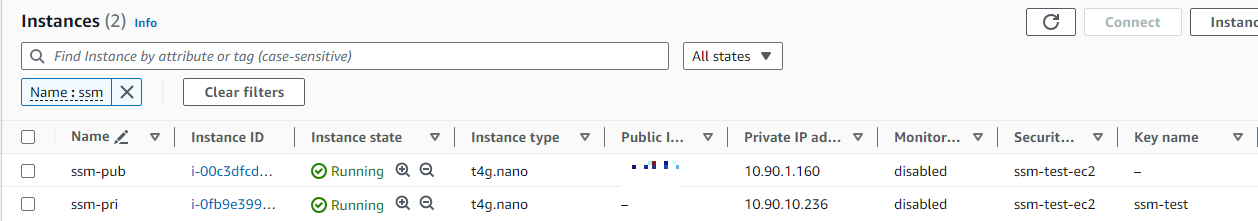

ssm-pub 인스턴스를 public 서브넷에 생성

ssm-pri 인스턴스를 private 서브넷에 생성, Key 생성(ssm-test) 후 배정

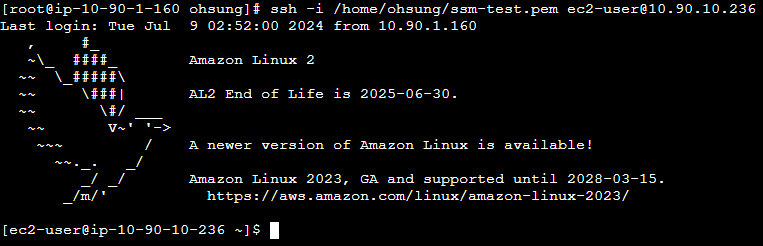

ssm-pub 인스턴스에서 ssm-pri ssh 접속

ssh -i /home/ohsung/ssm-test.pem ec2-user@10.90.10.236

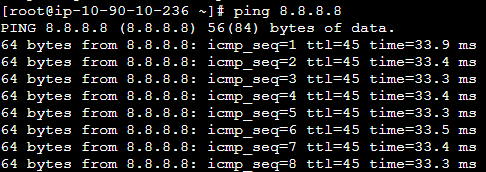

private subnet에 있는 ssm-pri 인스턴스에서 NAT gateway를 통해 인터넷 통신 확인
